EasyClip Tensioning clips
By combining the thin, flexible bending frame profile with EasyClips and a flat bar, printed textile banners can be tensioned onto curved or irregularly shaped structures.
Product Features
- Flexible frame profile for irregular shapes.
- Clips tensioned using a special tool.
- Easy and quick installation.
-

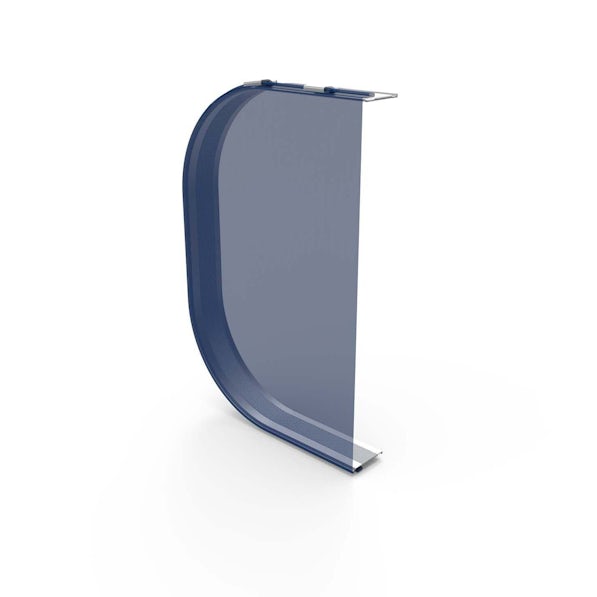

The EasyClip system consists of a thin, bendable aluminium profile with a serrated edge, designed to work with matching serrated clips. These clips are tightened with a special tool to securely tension the banner.
The flexible profile is mounted to an existing substructure using screws or rivets. After mounting, the banner is applied using the EasyClips to pull it tight.The maximum tensioning distance is 40 mm.
This system is ideal for curved or non-standard shaped installations, offering a practical and elegant solution for both indoor and outdoor textile signage applications.
-
- Feature
- Profile and clips for banners on irregular shapes.
- Medium
- Flexible substrates / banners
- Application
- Indoor and outdoor use
- Lighting
- Illuminated and non-illuminated
- Light source
- Led (on request)
- Configuration
- Single-sided
- Profiles
- 6100 mm, EN AW 6060 T6, mill finish
- Components
- EasyClips 40 mm.
